For a few years now I use Treston storages for all my little hardware and recently, I finally took the time to reorganise them. There seems to be some interest in the maker community so I made it open source.

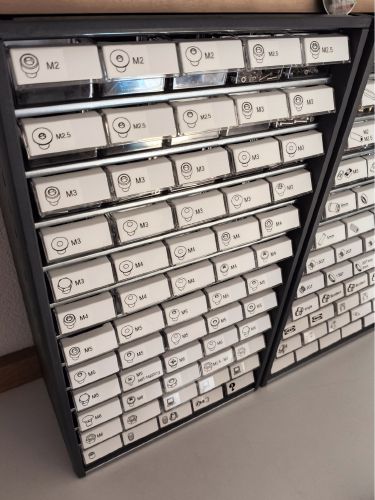

A Treston 550-3 fully sorted and labeled
Treston is a pro brand, it’s not cheap but it is well made, space optimised and solid. I have the 550-3 storages that has 60 drawers in only 550mm height and each drawer can be split in 6 spaces, this mean 360 compartments in one piece of furniture! I’m very happy with this brand and I now have 3 of them.

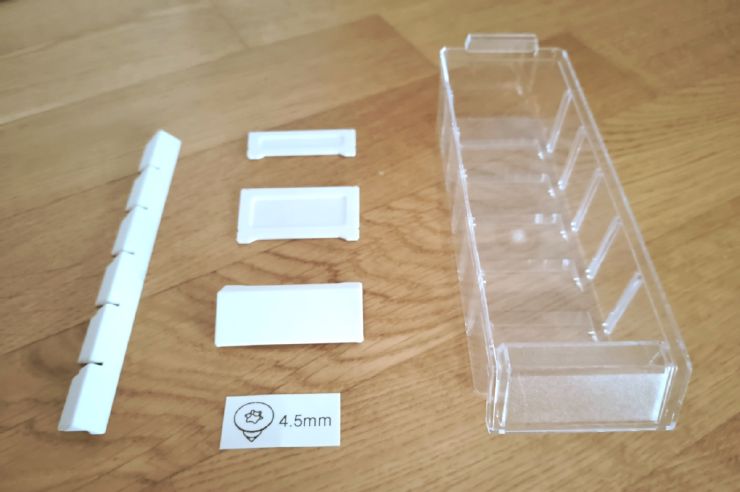

All current addons and an original drawer
This project consists not only in providing 3D printed parts like dividers or label holders but also includes all the little icons used to identify the hardware. I have also included pre-made labels for Brother label printers. They are made to identify the parts in a very quick way: a single image and large text. For example, the screw head and tool shape are easily identified with a single image where others systems often use two. Obviously, it also includes several icons dedicated to 3D printers hardware.

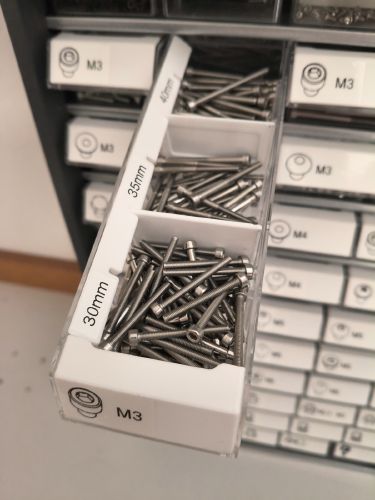

Internal dividers and labels
The project is available in my Codeberg repository at codeberg.org/gregsaun/treston_storage_addons
I hope this can be helpful to others :)
