The Project
When I started creating serious 3D printed designs, I realised that I needed to document some data, techniques, and commonly used dimensions. In the spirit of open source, I decided to make this publicly available through a cheat sheet.
It is available here: github.com/gregsaun/maker_cheatsheet
Some examples
Here is an exhaustive list of the most useful information that I share:
- Differences and nomenclature of Gates belts
- A script for Autodesk Fusion to make starting a project easier

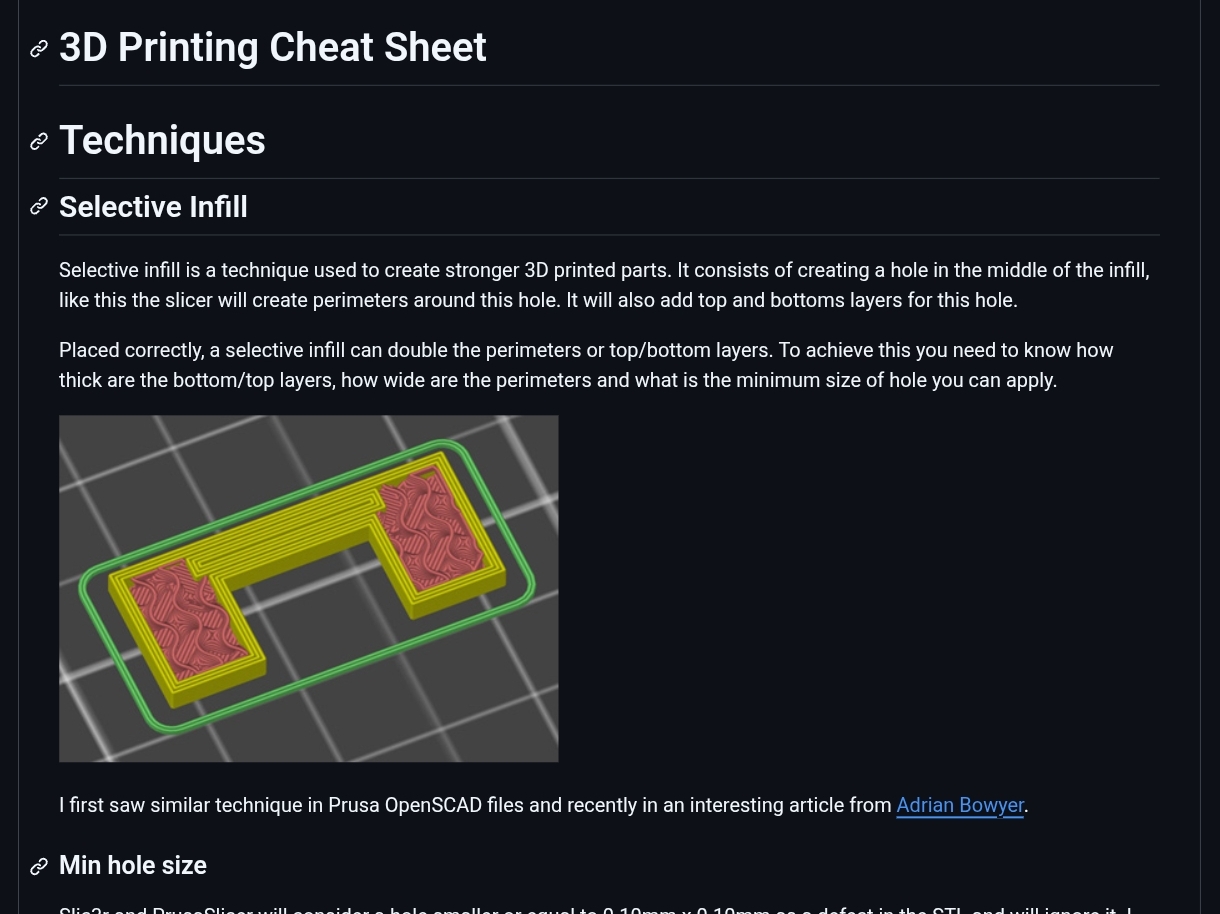

- 3D printing techniques, such as selective infill, nicer vertical holes and sharper corners
- Typical PETG sizes for nuts and screws
- Tolerances for shafts and holes
